CAN Gateway
CAN gateway — custom firmware to order.
€249.00incl. VAT
A simple CAN gateway with two independent CAN channels (CAN1 for the BMS, CAN2 external), a 4–32 V supply, two analog inputs, an RGB status LED and USB-C for firmware updates. The CAN Gateway is available with a variety of firmwares — pick the build and baud rate that matches your system.Other CAN protocols are possible on request. Tell us which build you need at checkout.
- ✓Two independent CAN channels (CAN1 BMS, CAN2 external)
- ✓Baudrate 125, 250, 500 and 1000 kbit/s
- ✓4–32 V supply voltage for 12 or 24 V systems
- ✓Two analog inputs & RGB status LED
- ✓USB-C for firmware updates
- ✓6-pin micro-fit connectors
Available firmware builds
- ›EMUS BMS → Speedhut (gauges)
- ›EMUS BMS → T2C (Tesla drive unit)
- ›EMUS BMS → Bidirectional TC charger
- ›CAN isolator / filter
- ›EMUS BMS → Victron HV BMS (for HS19 / Cerbo)
- ›EMUS BMS → Victron BMS (for LV Cerbo)
Custom firmware only. Tell us which build you need at checkout, or email support@mismo-tech.com — we flash it before shipping.
1

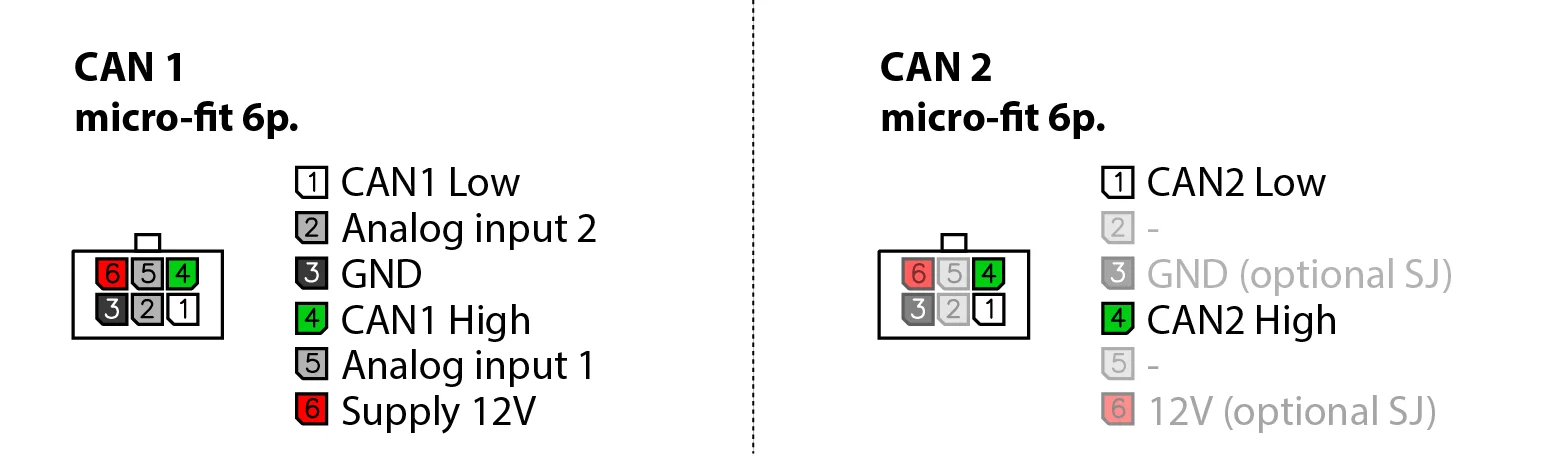

Diagrams & connectors
