CCS Charge Controller
DC fast-charge (CCS) and AC Type 2 charging for EV conversions.
€1,700.00incl. VAT

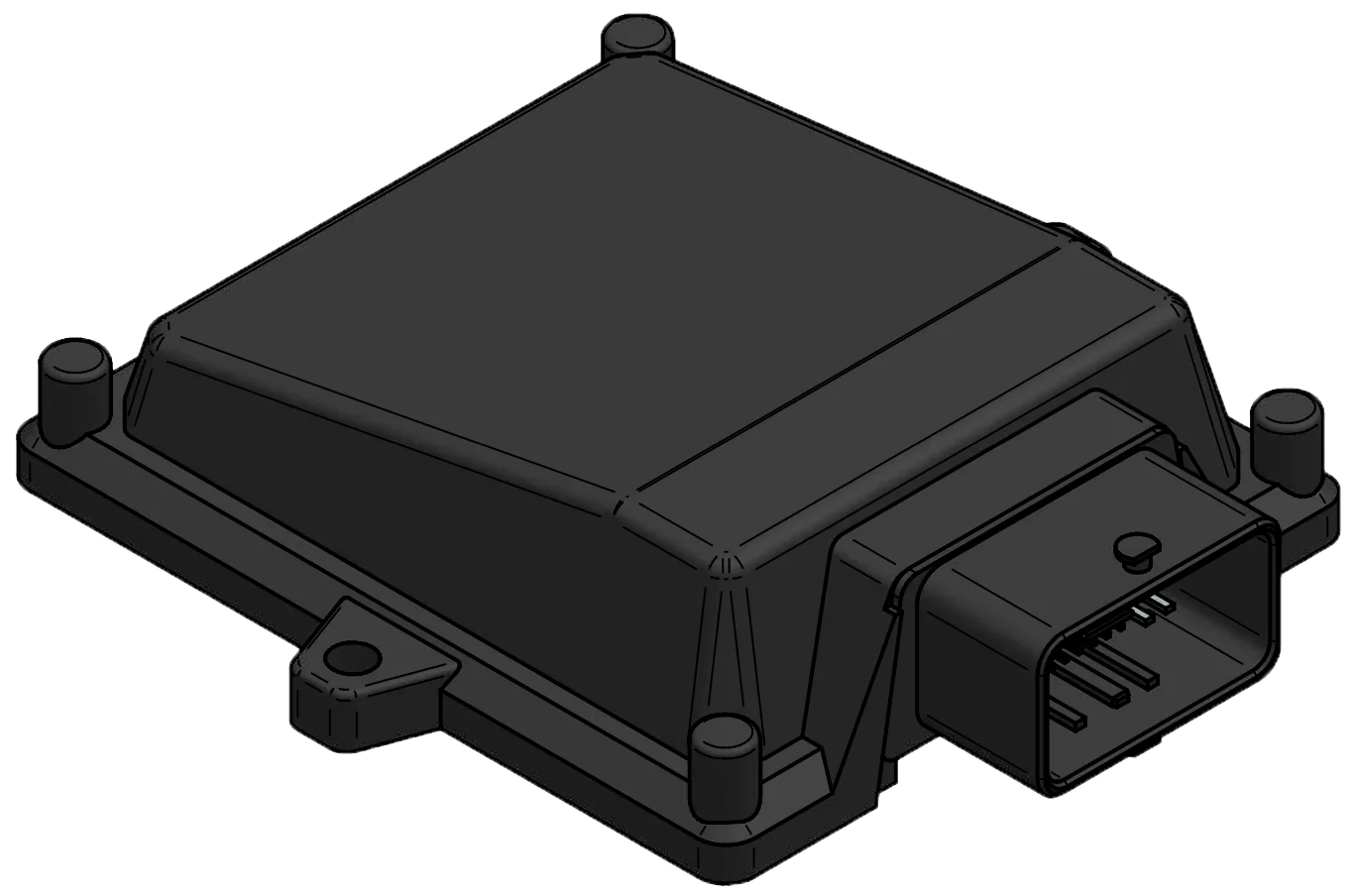

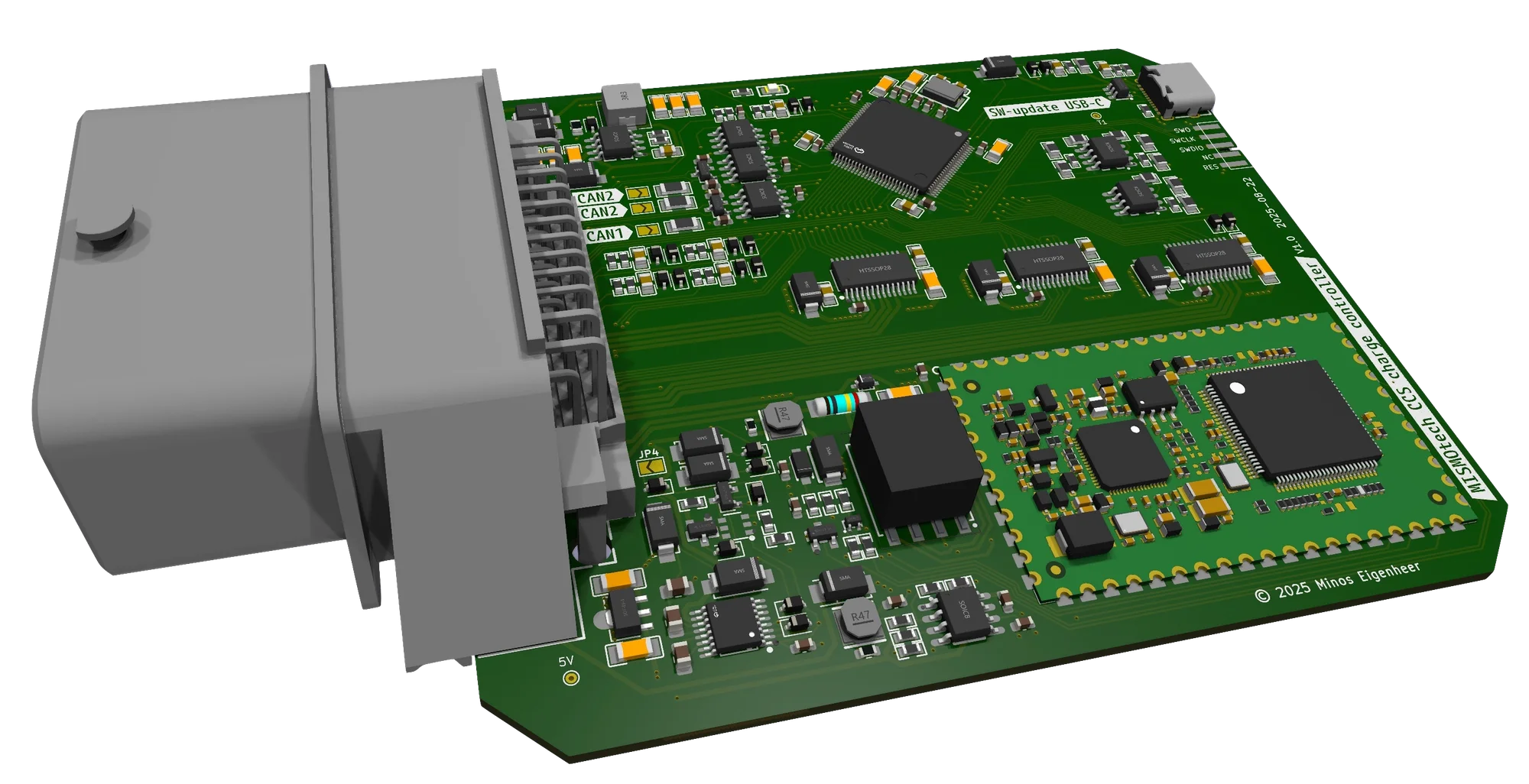

A charge controller that handles the charging communication between your EV conversion and the charger — both AC (Type 2) and DC fast charging (CCS). It talks CP (PWM + PLC) to the charger and CAN to your EMUS BMS, and controls the contactors, charge-port lock and stop button, RGB status LEDs for a complete, CCS fast-charge integration.
- ✓ISO 15118-2, ISO 15118-20 and DIN 70121 compatible
- ✓Battery systems 250–1000 VDC, up to 500 A
- ✓Low level CP communication (PWM) for AC charging (Type 2)
- ✓High level CP powerline communication (PLC) for CCS charging
- ✓Mode 1 (without EVSE), 2, 3 (AC EVSE) and 4 (DC) charging
- ✓CAN communication with EMUS BMS
- ✓Automotive ECU enclosure
- ✓12 and 24 V supply (9–32 VDC)
- ✓Very low stand-by power consumption
1
What you also need
Parts required to complete the fast-charge integration (not included):
- •ISABELLENHÜTTE IVT-S sensor (HV voltage & current measurement)
- •CCS2 inlet
- •4-pole actuator (charge-port lock, needs to match system voltage)
- •2× HV contactors (need to match system voltage)
- •HV Fuses and fuse holders
- •Push button with RGB status LED for stop charge (need to match system voltage)
- •recommended: PCAN-USB for diagnostics and logging

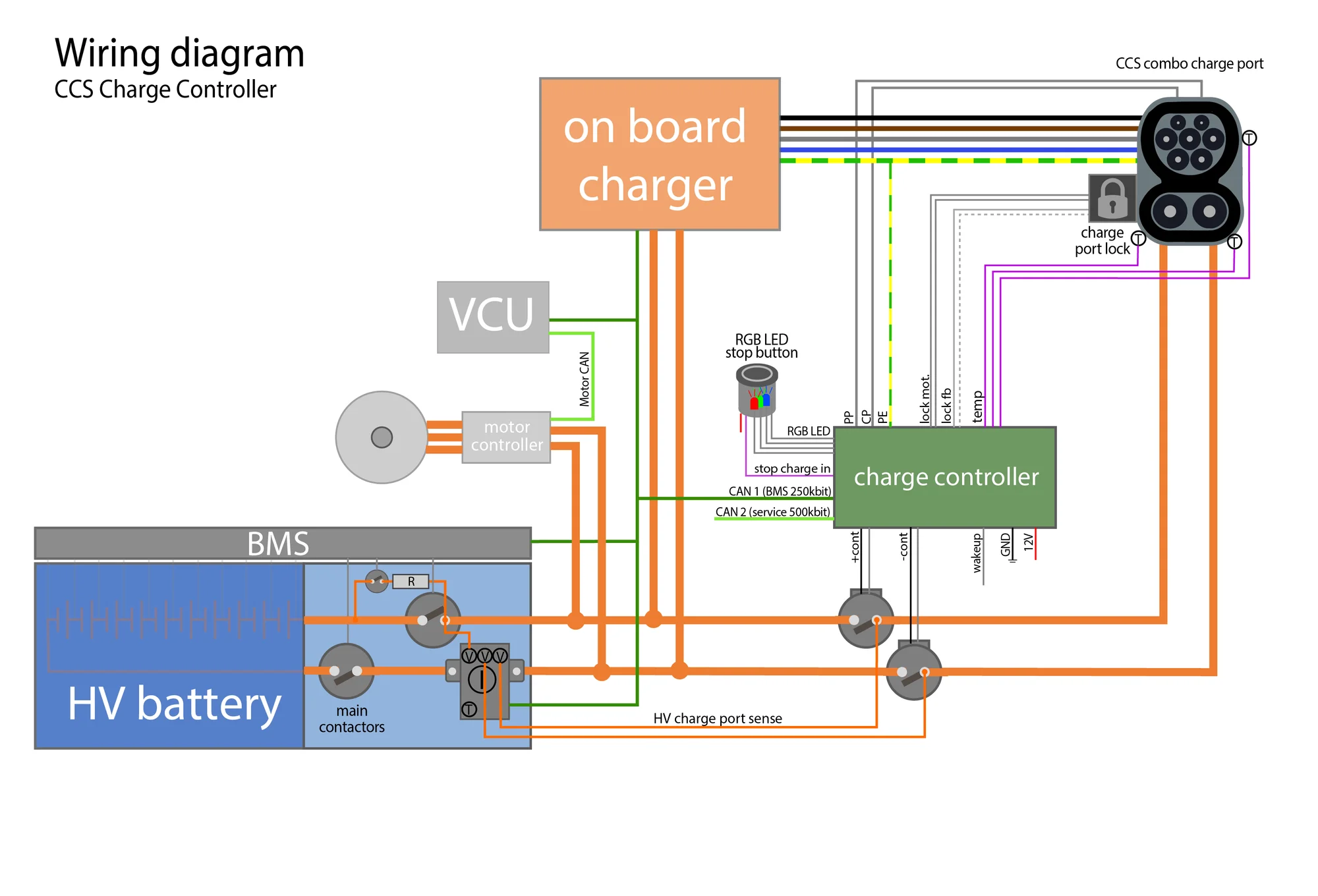

Diagrams & connectors
