EMUS BMS → NMEA2000 Gateway

Put your EMUS BMS battery data on the NMEA 2000 network.

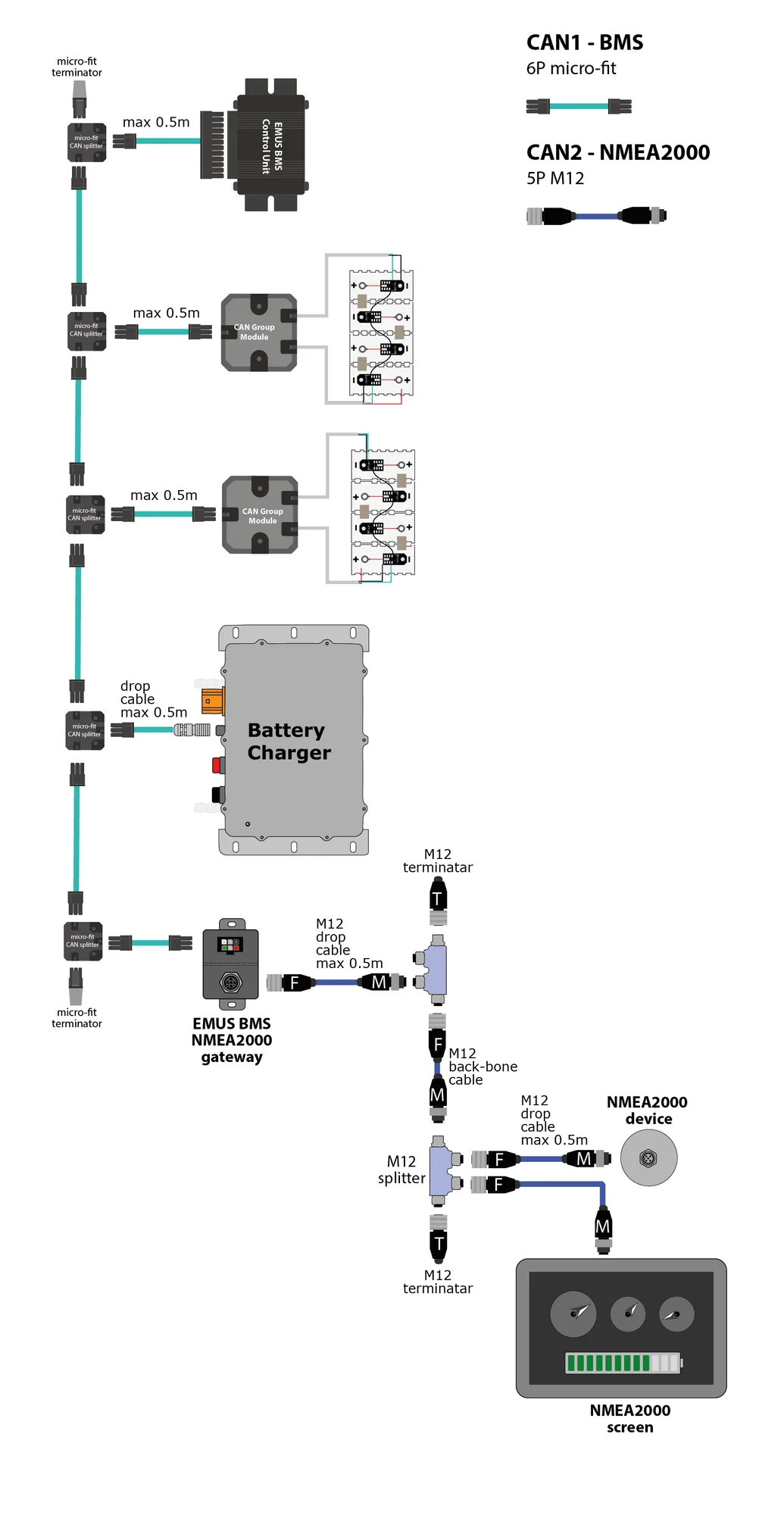

A galvanically-isolated gateway that bridges an EMUS BMS onto an NMEA 2000 marine network, so your battery state of charge, voltage, current and temperature show up on any NMEA 2000 multi-function display. Connects to the BMS over a 6-pin micro-fit CAN link and to the backbone over a standard 5-pin M12 NMEA 2000 connector. Normally with female M12, but male M12 is available on request. EMUS BMS CAN is default 250kbit and other baudrates available on request 125, 250, 500 and 1000 kbit/s)

• ✓EMUS BMS → NMEA 2000 (battery instance)
• ✓State of charge, voltage, current & temperature
• ✓Galvanically isolated between BMS and N2K bus
• ✓5-pin M12 NMEA 2000
• ✓6-pin micro-fit BMS connector
• ✓4–32 V supply for 12 or 24 V systems
