Electric motor → NMEA2000 Gateway

Put your electric motor telemetry on the NMEA 2000 network.

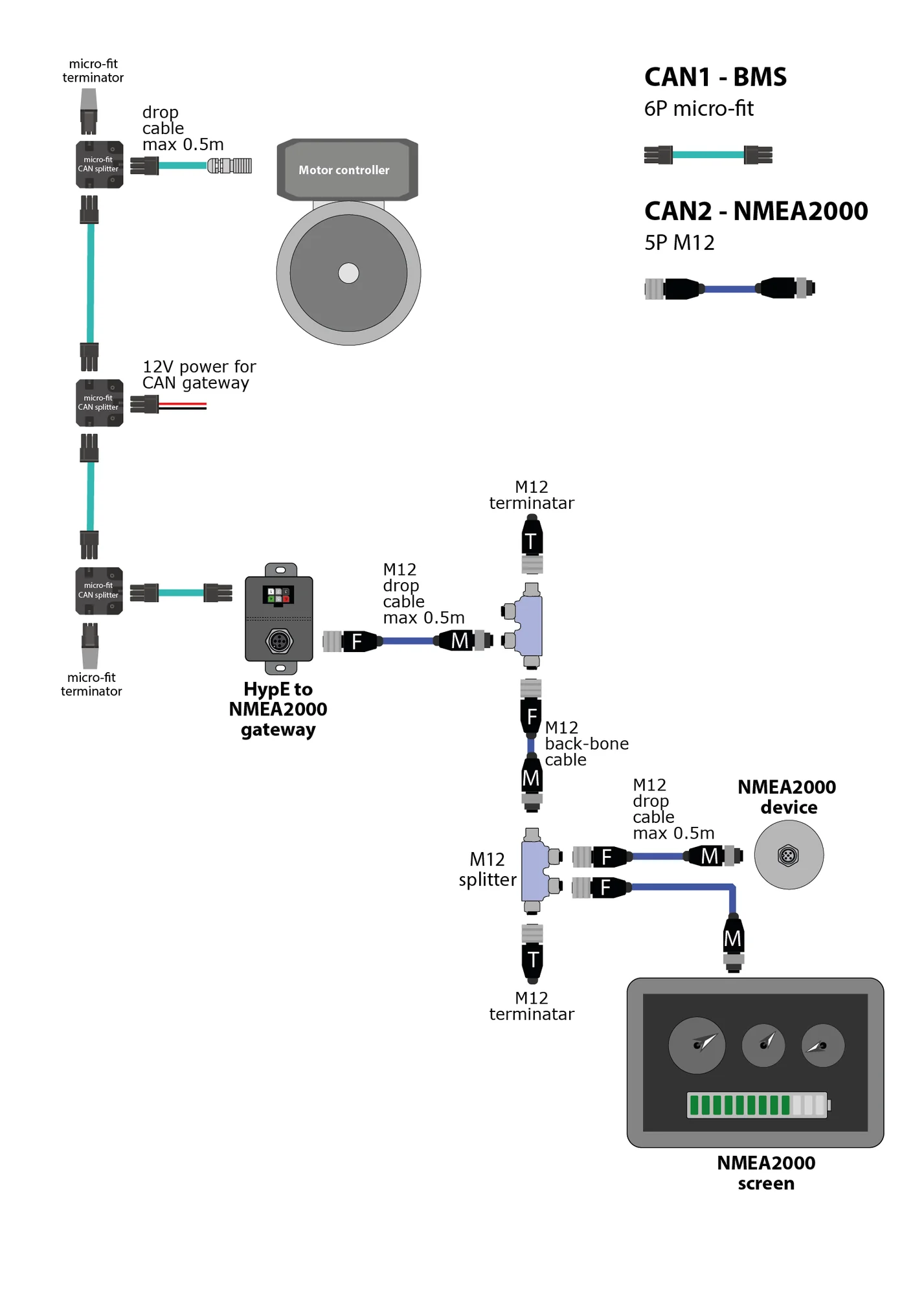

The same isolated gateway hardware, flashed to bridge an electric motor controller onto an NMEA 2000 marine network — motor RPM, temperature and power appear on your NMEA 2000 display. Connects to the motor CAN over a 6-pin micro-fit link and to the backbone over a standard 5-pin M12 NMEA 2000 connector. Default with SME / HypE motor protocols. Other motor protocols possible on request.

• ✓Electric motor controller → NMEA 2000
• ✓Motor RPM, temperature & power
• ✓Galvanically isolated between motor CAN and N2K bus

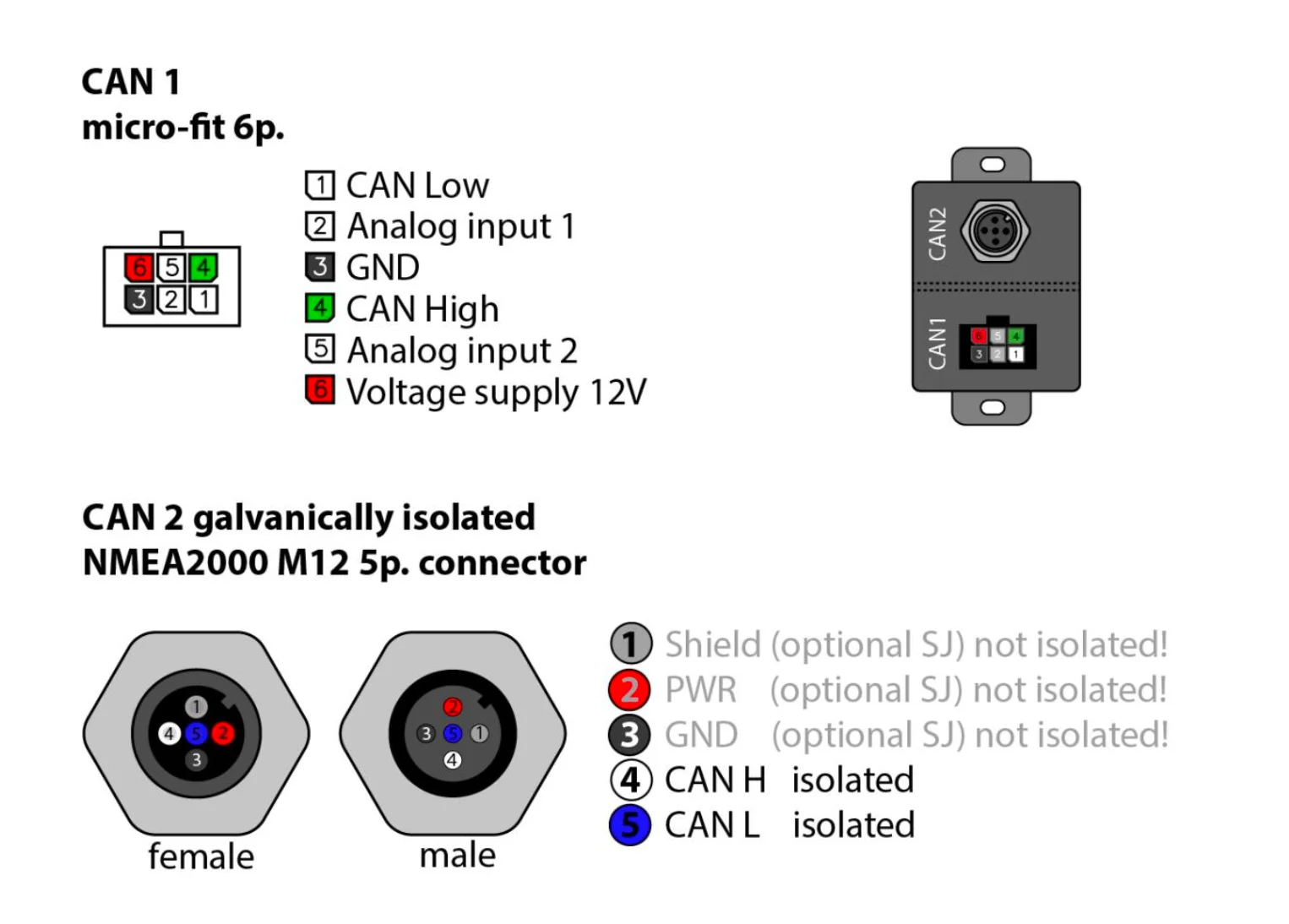

• ✓5-pin M12 NMEA 2000 + 6-pin micro-fit motor connector
• ✓4–32 V supply (can be powered from the network)
